Harvia Topclass is a user-friendly basic heater. The stainless steel outer casing of the heater gives your sauna a modern look.

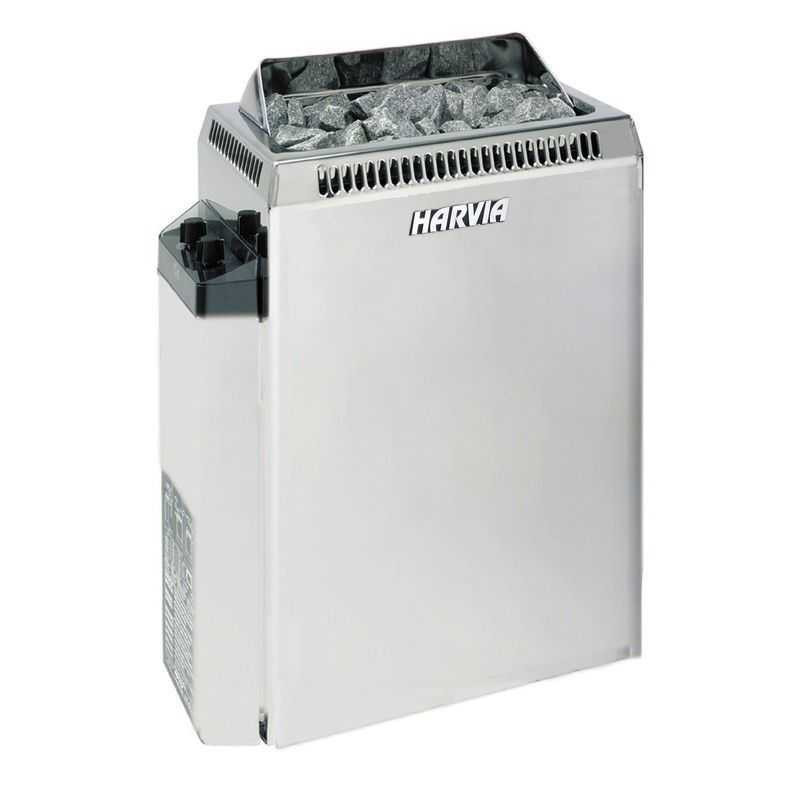

Harvia Topclass KV30 Electric Heater
Harvia Topclass is a user-friendly heater. The stone space is made of stainless steel. The illuminated control panel is placed on the side of the heater towards the top section, which makes it easy to access the switches even in the dim lighting of a sauna room, but also allows to heat the sauna up to 8 hours in advance, to control the temperature, and to program a heating session of up to 4 hours.
The heater is easy to mount on a separate mounting rack, and the control panel can be mounted either on the right side or the left side of the heater as appropriate. The outer casing of the heater is made of stainless steel. The TopClass heater comes with either single- or three-phase voltage supply.
The set includes:
- 1 HARVIA TopClass KV30 heater
- 1 sensor for adjusting the temperature in the sauna
- 20kg of volcanic stones.
- Model: Topclass KV30 heater.
- Output: 3 KW.
- Sauna room min.: 2 m3.
- Sauna room max.: 6 m3.
- Sauna height min.: 1900 mm.
- Heater size:
- Width: 450 mm.
- Height: 650 mm.
- Depth: 300 mm.
- Weight: 16kg.
- Stone capacity: 20 kg.
- Delivered with 20 kg of volcanic stones.
|KV30||400 V 3N||4 x 1,5 mm2||2 x 10A||230V 1N||3 x 2,5 mm2||1 x 16 A|
The Topclass heater can be placed on the floor or mounted on one of sauna's walls.
|Safety distance to wall 1||Safety distance to platform 2||Safety distance to wall 3||Safety distance to front upper platform 4||Safety distance to front lower platform 5||Safety distance to floor 6||Safety distance to ceiling 7|
|20 mm||5 mm||120 mm||60 mm||30 mm||150 mm||1100 mm|
Made in Finland.
Warranty: 2 years.
