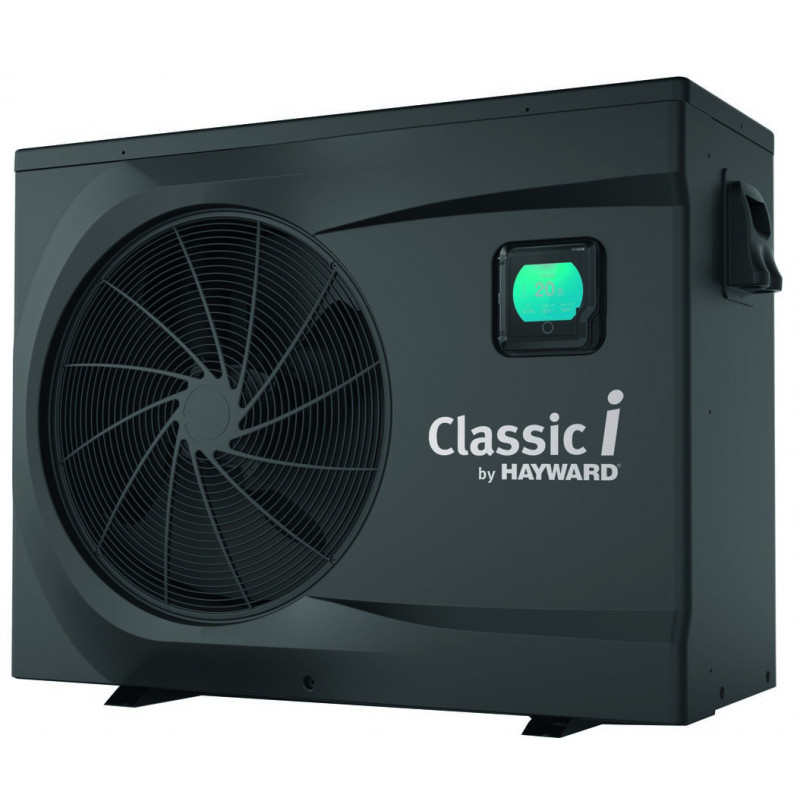

Hayward Classic Inverter Heat Pump

pompe à chaleur classic inverter hayward

The Classic Inverter Heat Pump let you extend the swimming season while saving money.

Inverter technology allows to regulate the activity and the power of the compressor according to the programming done upstream, thus, avoid operation in over-revving or under-regime.

The operation principles of an Inverter heat pump:

  • A known principle: The energy contained in the air is captured, then multiplied by thermodynamic principle and transferred to the water pool.
  • Inverter technology: This is the combination of a high performance Inverter compressor (Mitsubishi or higher) combined with a DC technology Inverter fan. This combination allows you to modulate and adjust the power precisely, according to the climatic constraints and energy needs of your swimming pool. The adjustment of the powers is fluid and not constrained to 2 or 3 powers. We obtain a rapid rise in temperature and a precise temperature maintenance throughout the season in a cost-effecient way due to this technology, which is up to 30% less energy consumption compared to a conventional heat pump.

The advantages:

  • New range is available in 100% inverter technology: technology that improves the reliability and longevity of the heat pump. The inverter technology allows the Classic Inverter PAC to be much more reliable than a lambda PAC by continuity of operation rather than the succession of on/off phases.

technologie inverter pompe à chaleur classic inverter hayward

  • Fast rise and precise maintenance of the desired temperature.
  • Easy to use and intuitive user control box.
  • New, more efficient fluid R32: Hayward introduces a new refrigerant R32. Unlike the R410A it:
    • Emits less than 60% of greenhouse gas emissions.
    • Reduces the amount of gas per kW of10%.
    • Easy to use and to recycle.
    • Zero impact on the ozone layer.
  • Silent pump: with inverter technology, the components, compressor and fan operate at very slow speed during temperature maintenance thus reducing the sound level to a simple movement mode. (+/- 20 dB in regulation mode)

pompe à chaleur silencieuse

  • LED touch screen: Intuitive piloting like a smartphone, very readable LED display. The monitoring of temperature data, energy consumption over 60 days is possible using this screen.

écran led pompe à chaleur classic inverter

  • Anti-vibration plate.
  • Wintering cover.

Technical characteristics:

Reference ECLI15MA (15Mono) ECLI20MA (20Mono) ECLI30MA (30Mono) ECLI40MA (40Mono)
Power supply (V) 220V-240V-/1ph/50Hz 220V-240V-/1ph/50Hz 220V-240V-/1ph/50Hz 220V-240V-/1ph/50Hz
Refrigerant
R32 R32 R32 R32
General warming potential 675 675 675 675
Coolant mass (kg)

0,350

0,430 0,480 0,65
Mass in TeqCO2
0,236 0,290 0,324 0,440

Heating power range (1)

Air 27°C-HR 78% -Water 26°C (kW)

1,62- -7,33 2,18- -8,97 1,97- -11,66 2,85- -17,06
Absorbed electrical power (1) (kW)
0,15- -1,17 0,17- -1,54 0,16- -1,99 0,26- -3,13
Intensity absorbed (1) (A)
1,15- -5,32 1,27- -6,91 1,08- -8,96 1,41- -13,69
COP (1)
11,04- -6,30 12,77- -5,81 12,57- -5,84 11,08- -5,45

Average heating power (1)

Air 27°C-HR 78%-Eau 26°C (kW)

5,50 6,02 6,34 9,95
COP (1) 8,02 8,61 8,79 8,00

Heating power range (2)

Air 15°C-HR 71% -Water 26°C (kW)

1,44- -5,36 1,58- -6,94 1,79- -8,62 2,74- -13,08
Absorbed electrical power (2) (kW) 0,24- -1,14 0,27- -1,53 0,290- -1,90 0,428- -2,97
COP (2) 5,98- -4,69 5,82- -4,53 6,17- -4,52 6,40- -4,40

Average heating power (2)

Air 15°C-HR 71% -Water 26°C (kW)

3,72 4,62 4,90 7,40
COP (2) 5,23 5,51 6,01 5,87
Nominal water flow (m³/h)
3,10 3,80 4,90 7,30
Hydraulic connection provided (mm)
50 50 50 50
Hydraulic pressure loss (kPa)
2,3 2,9 6,4 6,7
Sound pressure level @1m (dB(A)) 35 43 43 46
Sound pressure level @10m (dB(A))
18 25 25 29
Fan type DC Inverter DC Inverter DC Inverter DC Inverter
Number of fans 1 1 1 1
Compressor type Mitsubishi TWIN ROTARY DC Inverter Mitsubishi TWIN ROTARY DC Inverter Mitsubishi TWIN ROTARY DC Inverter Highly ROTARY DC Inverter
Reversible heat pump Yes Yes Yes Yes
Defrost mode Inversion de cycle Inversion de cycle Inversion de cycle Inversion de cycle
Silence mode
Yes Yes Yes Yes
Wintering cover provided provided provided provided
Heating priority function Yes Yes Yes Yes
Anti-vibration plate provided provided provided provided
User control box Led One touch 2,75" Led One touch 2,75" Led One touch 2,75" Led One touch 2,75"
Net size of the unit 1040x425x615 1040x425x615 1040x425x615 1130x460x780
Weight (kg)
42 45 46 60
Recommended pool volume (m³)
25 35 50 70

Warranty: 2 years
