The Hayward Water-Level Adjuster will control a constant level of water so that the filtration system never turns empty...
Hayward Water-Level Adjuster
The principle of work :
There is a loss of water (evaporation of the water, splashing, filtration etc ...) during the bathing season. The loss of water can lead to a water-level below the skimmer's mouth or worse a de-activation of the filter pump. It is essential to set up the water-level regulator in order to avoid these problems. It will maintain a constant water-level height and compensate water losses.

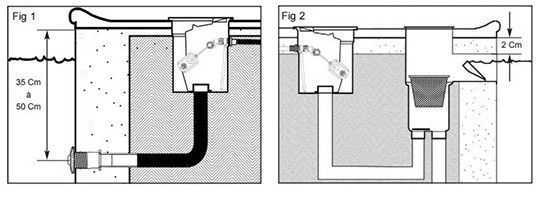

The water-level adjuster can be connected to a brush socket (fig 1) or to a skimmer (fig 2). It is equipped with a float valve that is connected directly to a water inlet. The float valve will be adjusted to the trigger which is filling the pool as soon as the water-level decreases. Once the correct water-level is obtained, the filling process will stop automatically.
- Material: ABS White.
- Hydraulic connection Ø50mm to be glued.
- Water inlet fitting Ø 3/8 "(12 x 17mm)
- Adjustable trigger mechanism.
Warranty : 2 years.
