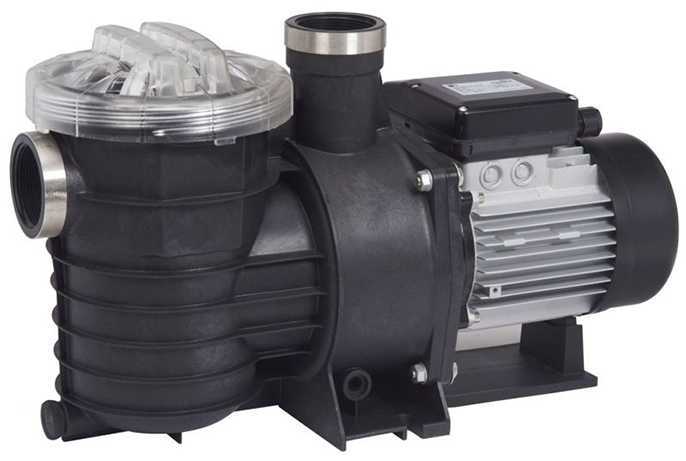

Guinard Filtra Pump
The Filtra pump is recommended for family pools designed for heavy duty use. It is very quiet and simple to use; the Filtra pump will reduce your power consumption by 15%. The pump of French manufacture is suitable for fresh water and salt water (up to 7gr/l max.)
Simple installation:
- Absorbtion and discharge ports - The new model with absorbing inlet (Filtra N) can be installed in place of an older generation (Filtra) without modification of plumbing. 2 '', stainless steel rings.
- Only one pump housing for the entire range.
Easy-to-use:
- Self-priming pump, monoblock in shockproof synthetic material.
- Transparent self-locking cover for checking the condition of the filter basket.
- It is supplied with a tool for effortless opening.
Simple maintenance:
- Large capacity 3-part basket for easy cleaning.
- Engine interchangeable by 4 bolts without disassembling the pump.

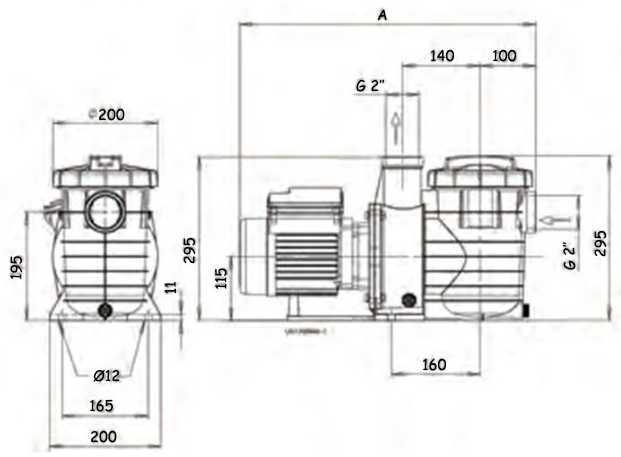

Dimensions:
| Filtra Pump |
A (mm) |
| 6 Mono | 512,5 |
| 8 Mono/Tri | 512,5 |
| 12 Mono/Tri | 512,5 |
| 14 Mono/Tri | 512,5 |
| 18 Mono/Tri | 512,5 |
| 22 Mono/Tri | 534 |
| 24 Mono/Tri | 534 |
| 30 Tri | 534 |

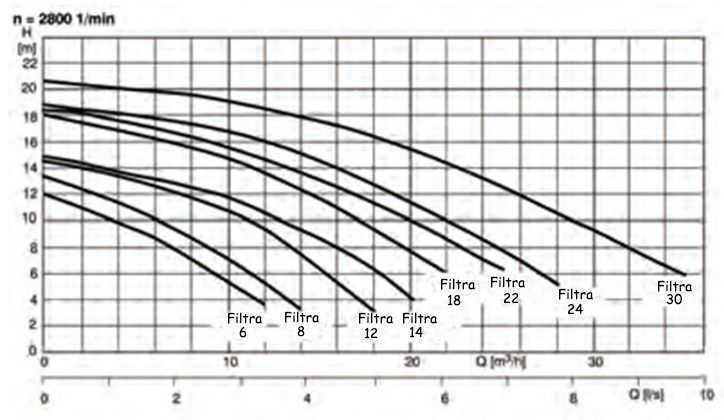

Performance diagram:
Technical specifications:
- Maximum Head: 21m.
- Maximum delivery pressure: 2.5 bar.
- Maximum temperature of the pumped liquid: 35 °C.
- Clear water or salt water, treated water up to a concentration of 7 g/L.
- It is not suitable for sea water (35g/L).
| Pump model |
Flow | Power | Intensity A |
| Filtra 6 Mono | 6m³/h | 0,65 kW , Mono | 3,00 |
| Filtra 8 Mono | 8m³/h | 0,70 kW , Mono | 3,20 |
| Filtra 8 Tri | 8m³/h | 0,60 kW , Tri | 1,20 |
| Filtra 12 Mono | 12m³/h | 0,80 kW , Mono | 3,60 |
| Filtra 12 Tri | 12m³/h | 0,70 kW , Tri | 1,30 |
| Filtra 14 Mono | 14m³/h | 0,95 kW , Mono | 4,50 |
| Filtra 14 Tri | 14m³/h | 0,90 kW , Tri | 1,80 |
| Filtra 18 Mono | 18m³/h | 1,15 kW , Tri | 5,50 |
| Filtra 18 Tri | 18m³/h | 1,00 kW , Tri | 2,00 |
| Filtra 22 Mono | 22m³/h | 1,50 kW , Tri | 7,00 |
| Filtra 22 Tri | 22m³/h | 1,40 kW , Tri | 2,90 |
| Filtra 24 Mono | 24m³/h | 1,75 kW , Tri | 8,00 |
| Filtra 24 Tri | 24m³/h | 1,60 kW , Tri | 3,20 |
| Filtra 30 Tri | 30m³/h | 2,15 kW , Tri | 3,60 |
Warranty: 3 years
